Featured
Graphite Electrodes

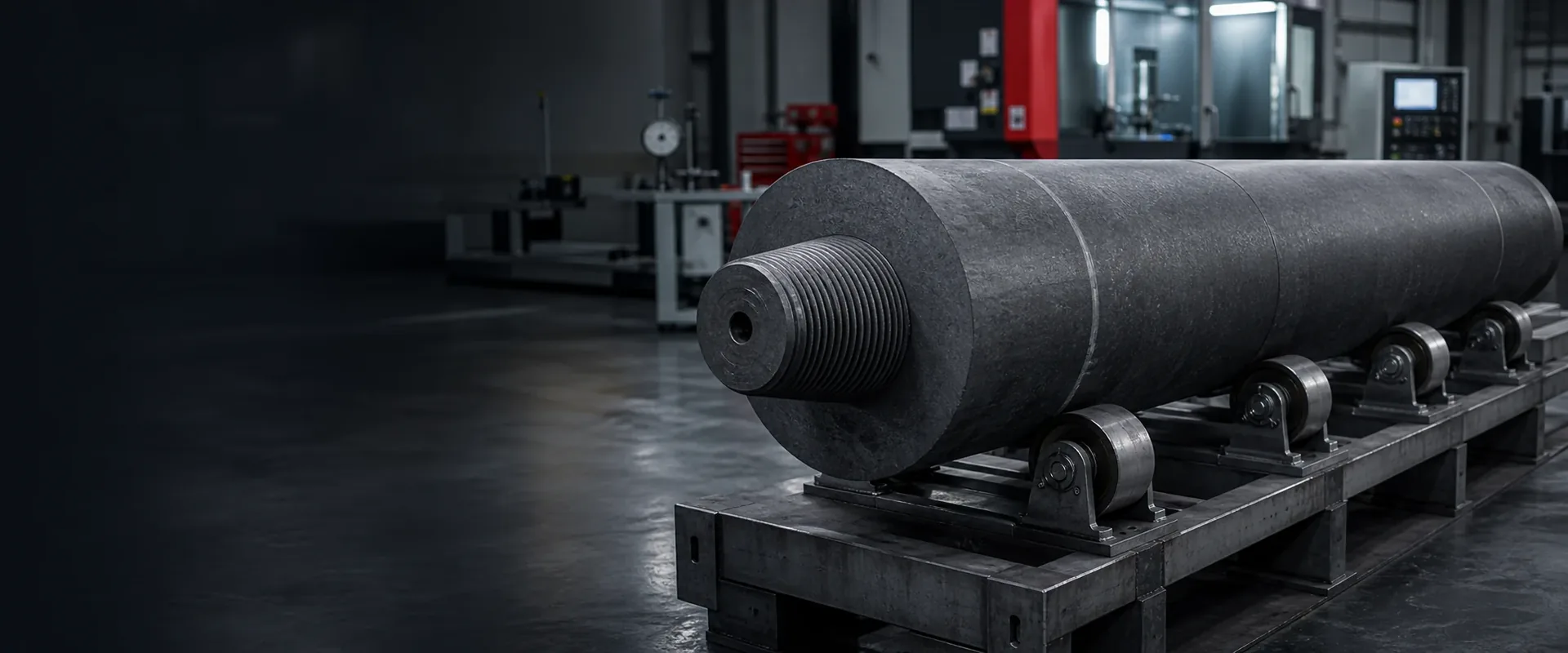

UHP Graphite Electrode
High-current graphite electrode for ultra-high-power EAF steelmaking.
View specifications +Core product system
UHP, HP & RP graphite electrodes
Compare electrode grades, typical properties, available sizes and matched nipple systems before requesting a technical quotation.
Featured
Featured
Graphite Electrodes
HP Graphite Electrode
Balanced conductivity and strength for high-power EAF and ladle furnaces.
View specifications +
Featured
Graphite Electrodes
RP Graphite Electrode
Dependable, economical electrode for standard-power furnace operation.
View specifications +
Featured
Graphite Electrodes
Graphite Electrode Nipple
Precision-machined 3TPI and 4TPI connections for stable current transfer.
View specifications +
Carbon Additives
Graphitized Petroleum Coke (GPC)
High-carbon, low-sulfur recarburizer with fast dissolution and strong absorption.
View specifications +
Carbon Additives

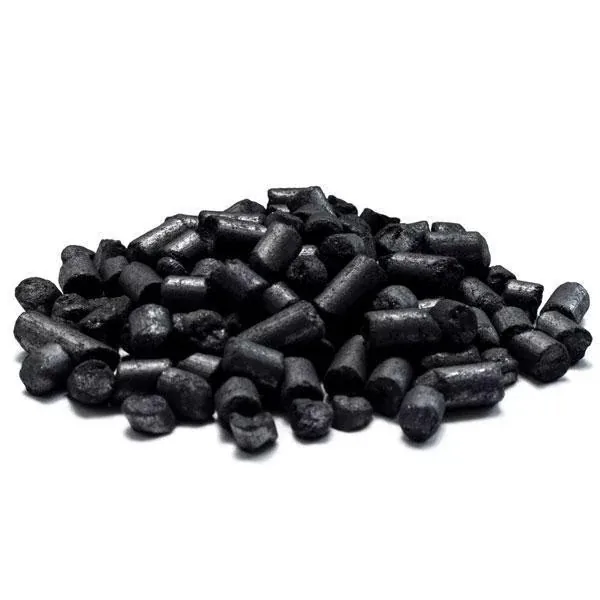

Calcined Petroleum Coke (CPC)
Consistent carbon additive for steelmaking, foundry and ferroalloy production.
View specifications +
Carbon Additives

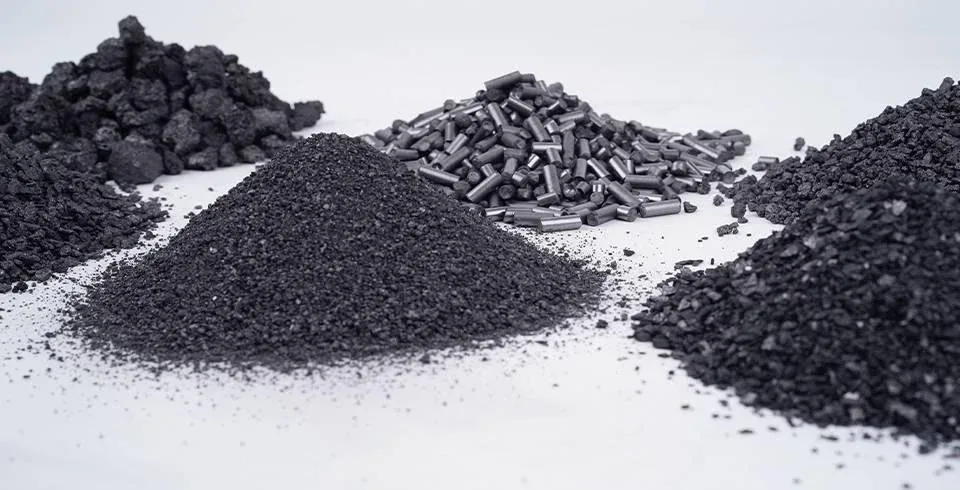

Metallurgical Recarburizer
Flexible carbon grades and particle sizes for induction furnace and foundry use.
View specifications +Grade selection
Choose around the actual furnace load.
This comparison is an initial selection guide. Final grade, dimensions and properties are confirmed after furnace-data review.
GradeTypical furnaceLoad levelDiameter reference
UHPUltra-high-power EAFVery high current density300-800 mm
HPHigh-power EAF / LFHigh load200-700 mm
RPStandard-power electric / alloy furnaceStandard load75-800 mm
NippleMatched to electrode and socket3TPI / 4TPIBy electrode diameter
Standard size reference
Common dimensions for technical inquiry.
Special specifications can be discussed. Diameter tolerance, length tolerance, socket dimensions and nipple designation are confirmed in the order specification.
- Nominal diameter
- 75 / 100 / 130 / 150 / 200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600 / 650 / 700 / 800 mm
- Common length
- 1600 / 1800 / 2100 / 2400 / 2700 / 2800 mm
- Thread systems
- 3TPI (8.467 mm) / 4TPI (6.350 mm)
- Custom options
- Grade, size, nipple designation, marking and export packing
